ElectRelease Foil Patch

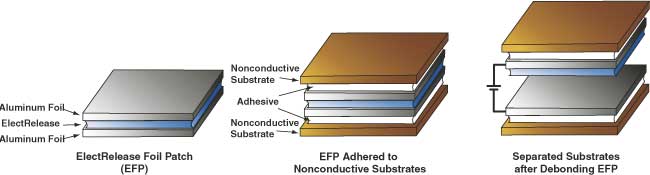

The ElectRelease Foil Patch (EFP) is a pre-cured laminate of ElectRelease E4 between aluminum foil sheets. The EFP is cut to shape and incorporated into an adhesive bond with additional ElectRelease epoxy or an adhesive of the customers' choice. The EFP is debonded by applying a voltage to the aluminum foils. With the pre-cured EFP, rapid curing adhesives can be used in assembly operations. Any adhesive that bonds to aluminum is suitable.
Properties*:
| Thickness: | 0.010 to 0.015 inches (standard) |
| Debonding: | 10 V d.c. or greater. |
| Debond Time: | 1 second or longer, depending on voltage and load on bond |
| Shelf-life: | No known limit |
| Availability: | 5 x 5 cm pieces (standard); custom sizes |
